The Stubby Truck Baseplate - MK1 - (Aka. Stubby) is designed for long distance skateboarding (and is ideal for pumping alongside other styles). It designed to be compatible with both the Stubby Truck Hanger and the DT (Dont Trip Skateboards) Poppy.
It is precision CNC machined out of 7075-T6 aluminium alloy (typically used in aerospace), and offers an enormous range of adjustable features that gives users versatility to truly set-up their trucks to personal preference:
- Adjustable Angle Baseplate: Possible angle adjustment of 135°. 0°-90° in one direction and 0°-45° in the inverse direction. Markings on the adjustable base provide an indication of angle set, starting at 0° in the centre marked with a cross, and spread either side depicting 15° separations. This in turn enables these trucks to be incredibly versatile, and offers the possibility for these to be used as both front and rear trucks, with adjustments being possible without the need of removing the truck.
The Baseplate is supplied with two 10/32" Socket cap screws & counterpart Nuts, 7075-T6 CNC machined clips, and four 3D printed Carbon PLA risers for interfacing the baseplate with a fork/bracket.
Price: £145 + shipping cost.
(The first run will be a limited run of 75 Baseplates. Once this limit has been reached there will be the option to place a pre-orders for the proceeding run.)

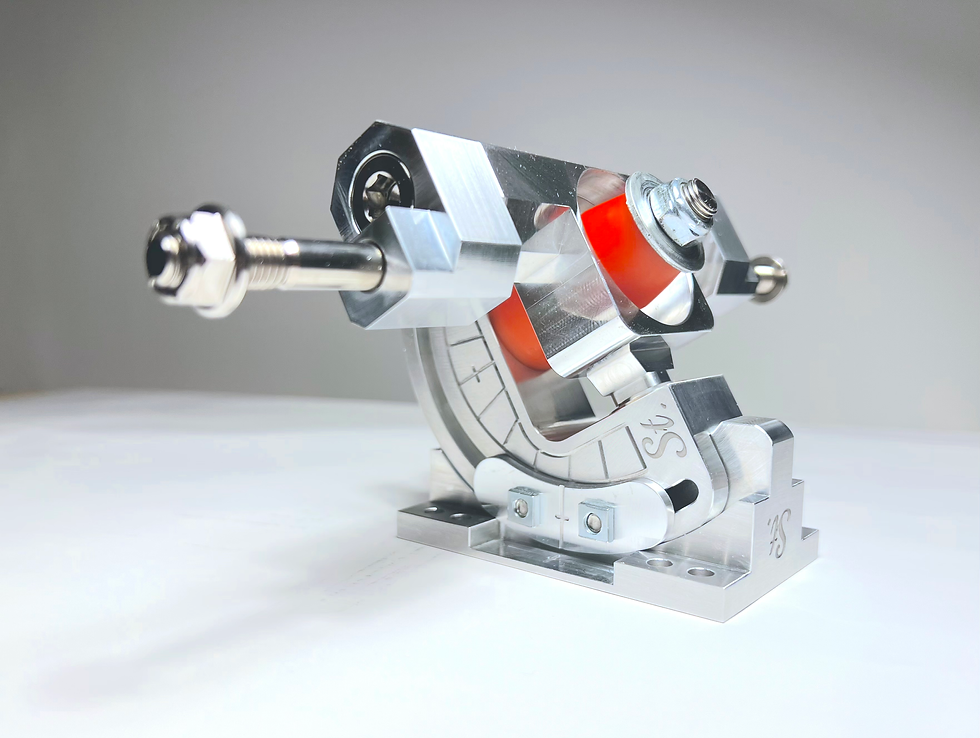

The Stubby Truck Baseplate - MK1
OVERVIEW:
Adjustable Angle Baseplate:
- Possible angle adjustment of 135°. 0°-90° in one direction and 0°-45° in the inverse direction.
Fixing / Hardware:
- 10/32" Socket cap screws and corresponding nuts.
- 7075-T6 CNC machined clips.
- Supplied with a fitted spherical bearing pivot.
Finish:
- Bead Finished 120, and Hard Anodized (Type III) - Please refer to the last video within the above image gallery for reference to the latest iteration and colour finish.
